Coverband 3

Coverband gives deep insight into the production usage of every line of code in your Ruby app. Find dead code, find hotspots, see code paths that might be unexpectedly in high usage.

This release marks deep dives into Ruby performance, benchmarking, and driving almost all features based on improving performance. The release is a majory performance improvement, resolving some issues were Coverband 2 could have outliers that performed worse than the original Coverband 1 gem.

Bugs

Me first and the Gimme Gimmes, a punk cover band, image from Wikimedia

Want to see it in action, visit the Coverband Demo Site, visit a few pages and watch the coverage report change as you use the site.

What breaking changes are there?

  • drops Tracepoint
  • drops Ruby <= 2.3.0
  • drops JSON Gem dependency
  • drops various other features not needed without Tracepoint
    • memory cache, sampling, restricted to app folders, etc

What is new?

  • standardizes on Coverage array format vs sparse hash
  • rewrites store methods, for 60X perf!
    • implemented for Redis and File store
  • improved mountable web interface

What exactly is faster?

tldr;

Storing Coverage data to a data store. While this didn’t happen often when it did it could generate thousands of Redis requests on large apps, which could make for a very slow outlier request…

Long Version

The primary improvements come down to changing the storage format and moving from method of storage that required one call per file and assummed a small list of files, to a 2 pass stoage for all data. Basically, the previous storage mechanism created an N+1 type issue. Coverband 2 had solved the issue of capturing Coverage data, which was no longer a performance concern, in fact it captured all files by default as there wasn’t really a reason to filter for performance anymore… This created a new problem when trying to store coverage data. Eventually a very specific benchmark was added that simulates trying to store coverage reports for apps with 2934 files tracking coverage. In Coverband 3 by changing the storage format and the storage plan the storage benchmark improved by nearly 60X!

Simulate repeatedly storing coverage reports with Coverband 2.0.3:

rake benchmarks:redis_reporting
runs benchmarks on reporting large sets of files to redis
Warming up --------------------------------------
       store_reports     1.000  i/100ms
Calculating -------------------------------------
       store_reports      0.814  (± 0.0%) i/s -     13.000  in  15.982911s

Simulate repeatedly storing coverage reports with Coverband 3.0.0:

rake benchmarks:redis_reporting
runs benchmarks on reporting large sets of files to redis
Warming up --------------------------------------
       store_reports     4.000  i/100ms
Calculating -------------------------------------
       store_reports     47.111  (± 4.2%) i/s -    708.000  in  15.066259s

How did this impact Rails Apps

In general, depending on various settings the outliers weren’t that noticable or it made Coverband unusable for folks. I configured a Rails app with non ideal, but not terrible options, to show what this could look like and how Coverband 3 resolves the issue. If configured idealy even Coverband 2 would mostly only show in outliers, so this test is showing how even in a bad setup V3 performs with nearly no impact.

The benchmarks below are a further iteration of my AB Benchmarking Rails apps process. Now much easier to read and compare, by graphing by following this Apache Bench via Gnuplot guide.

No Coverband Coverband 2 Coverband 3
Bugs Bugs Bugs
mean: 27.272 [ms] mean: 35.762 [ms] mean: 28.460 [ms]
36.67 [#/sec] (mean) 27.96 [#/sec] (mean) 35.14 [#/sec] (mean)

Notice that with no Coverband and Coverband 3, the majority of requests show little variation, while Coverband 2 has frequent outliers pushing request timing all over the place. See full sized images of the benchmarks below.

What is next?

I am glad you asked, as we introduced a roadmap and set of feature discussions for upcoming Coverband improvements. Check out the changes.md for the latest, but in short here is some of what we have in the works.

Please give Coverband a shot and add any issue you have to the repo.

Footnotes

For those crazy few that really want all the data on the benchmarks…

No Coverband

No Coverband benchmark graph
rake benchmarks:coverband_demo_graph
Benchmarking coverband-demo.herokuapp.com (be patient)

Concurrency Level:      10
Time taken for tests:   54.543 seconds
Complete requests:      2000
Failed requests:        0
Requests per second:    36.67 [#/sec] (mean)
Time per request:       272.717 [ms] (mean)
Time per request:       27.272 [ms] (mean, across all concurrent requests)

Percentage of the requests served within a certain time (ms)
  50%    262
  66%    269
  75%    273
  80%    276
  90%    288
  95%    302
  98%    328
  99%    350
 100%   1400 (longest request)

Coverband 2

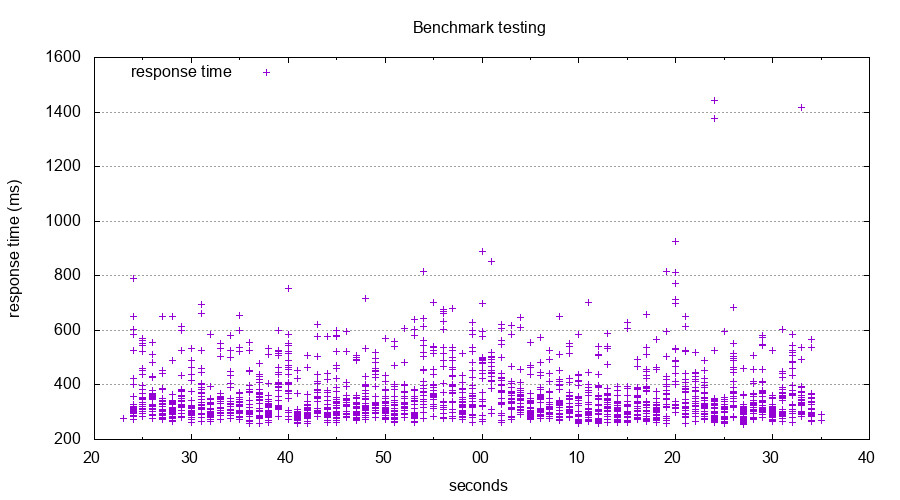

Coverband 2 benchmark graph
rake benchmarks:coverband_demo_graph
Benchmarking coverband-demo.herokuapp.com (be patient)

Concurrency Level:      10
Time taken for tests:   71.524 seconds
Complete requests:      2000
Failed requests:        0
Requests per second:    27.96 [#/sec] (mean)
Time per request:       357.619 [ms] (mean)
Time per request:       35.762 [ms] (mean, across all concurrent requests)

Percentage of the requests served within a certain time (ms)
  50%    325
  66%    353
  75%    378
  80%    398
  90%    489
  95%    545
  98%    622
  99%    682
 100%   1442 (longest request)

Coverband 3

Coverband 3 benchmark graph

rake benchmarks:coverband_demo_graph
Benchmarking coverband-demo.herokuapp.com (be patient)

Concurrency Level:      10
Time taken for tests:   56.919 seconds
Complete requests:      2000
Failed requests:        0
Total transferred:      16565120 bytes
HTML transferred:       14974000 bytes
Requests per second:    35.14 [#/sec] (mean)
Time per request:       284.597 [ms] (mean)
Time per request:       28.460 [ms] (mean, across all concurrent requests)

Percentage of the requests served within a certain time (ms)
  50%    273
  66%    282
  75%    290
  80%    296
  90%    319
  95%    344
  98%    381
  99%    410
 100%   1358 (longest request)
